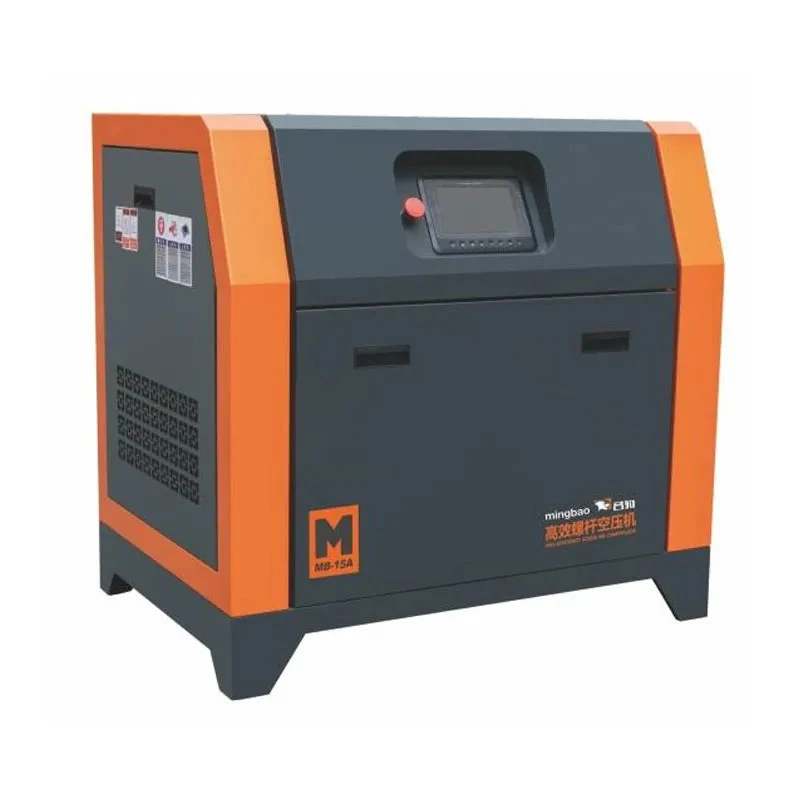

The direct-drive air compressor features a compact structural design in which the motor is directly coupled to the screw air-end. Power transmission is achieved via a coupling, thereby eliminating traditional belt-drive or gear-reduction mechanisms and resulting in a significantly simplified overall machine structure.
In terms of basic composition, a direct-drive air compressor typically consists of a motor, a screw air-end, a coupling, a lubrication system, a cooling system, and a control system. Specifically, the motor and the air-end are mounted either coaxially or in near-coaxial alignment and are connected directly via a high-precision coupling, ensuring both the stability and efficiency of power transmission. This structural configuration minimizes energy losses associated with intermediate transmission stages while simultaneously reducing the number of potential points of mechanical wear.
Direct-drive air compressors frequently utilize an integrated base design, wherein the motor and the air-end are securely mounted on a single shared frame to enhance the equipment's structural rigidity and operational stability. The lubrication and cooling systems are typically integrated and arranged around the air-end to ensure effective heat dissipation and lubrication. The control system is centrally installed-either externally on the unit or within a dedicated control cabinet-to facilitate unified management of pressure, temperature, and operational status, thereby ensuring the entire machine operates with greater efficiency and stability.
